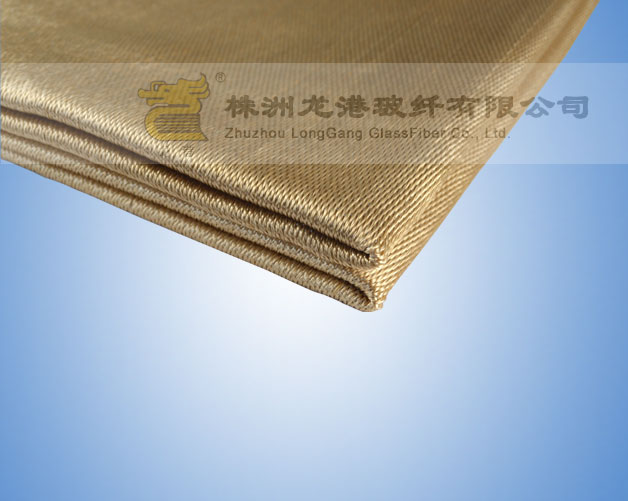

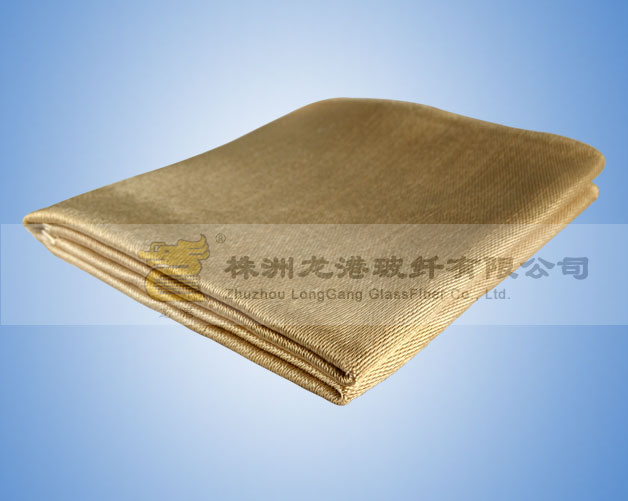

HT800 is effective against moderate to heavy welding sparks. Its light and heat treated satin weave pattern results in thicker, heavier and stronger fabric far more resistance to heat impact from welding sparks as compared to other thinner, texturized cloths.
Grade C Yarn Type C-glass
Application Fireproof, heat preservation
|
Item Number |
HT800 |
|
Weave |
satin |
|
Yarn(tex)
|
Warp
Weft |
EC9 33 4×2
EC9 33 4×2 |
ECG 150 4/2
ECG 150 4/2 |
|
Width
|
101.6±2cm
121.9±2cm
152.4±2.54cm |
40±0.75inch
48±0.75inch
60±1inch |
|
Thickness |
0.8±0.08mm |
0.031±0.0031inch |
|
Weight |
880±44 g/㎡ |
26±1.3 oz/yd2 |
|
Thread
Count |
Warp
Weft |
18±1.8per cm
13±1.3per cm |
45.7±4.5per inch
33±3.3per inch |
|
Tensile
Strength |
Warp
Weft |
8000 N/5cm
6000 N/5cm |
888 Ibs/inch
666 Ibs/inch |
|
L.O.I% |
＜0．5% |
|
Service Temperature |
550℃ |
