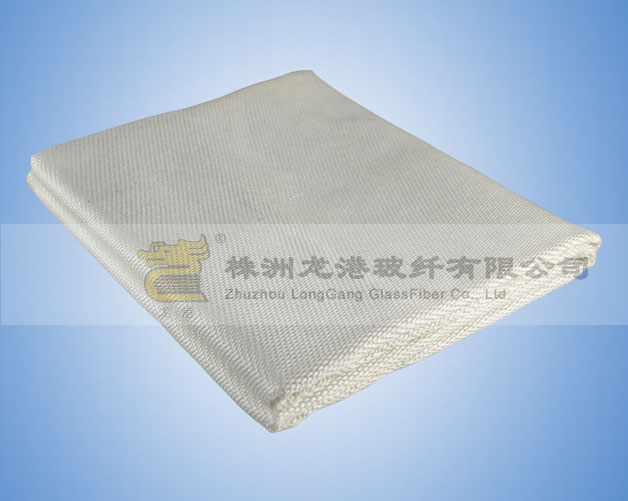

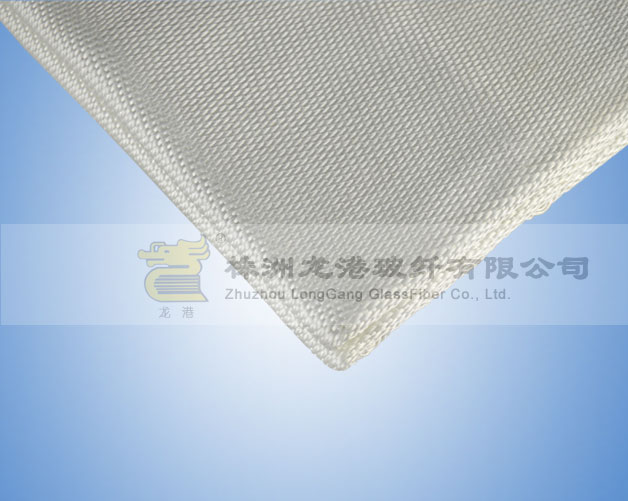

  3788 fiberglass fabric|Fiberglass fabric 3788|Fiberglass manufactory
[Views:



Grade:C Yarn Type:C-glass Application: coating

Information
Item number


                3788
Weave

                Satin
Yarn(tex)

Warp
Weft
EC9 33   4×4
EC9 33   4×4

ECG  150  4/4
ECG  150  4/4

                       Width

 101.6±2cm
 121.9±2cm
152.4±2.54cm
182.9±2.54cm
40±0.75 inch
48±0.75 inch
60±1 inch
72±1 inch

                   Thickness


  1.7±0.17mm


 0.067±0.0067inch
                    Weight

 1700±85g/㎡
 50±2.5oz/yd2
Thread
Count

Warp
Weft
18±1.8per  cm
13±1.3per  cm
45.7±4.5per inch
33±3.3per inch
Tensile
Strength

Warp
Weft
11000 N/5cm
8500 N/5cm
1222Ibs/inch
 944Ibs/inch
 L.O.I%
              <0.5%
 Service Temperature

Being high-temperature dewaxing and heat treat,3788 fabric is used extensively in the ship fabrication, Oil and gas and construction industries.
