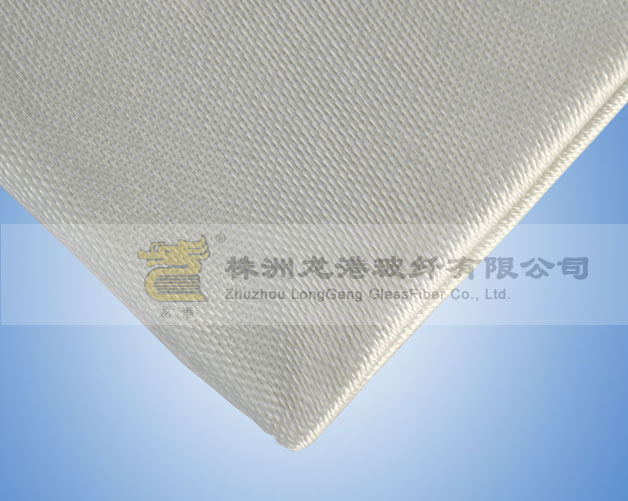

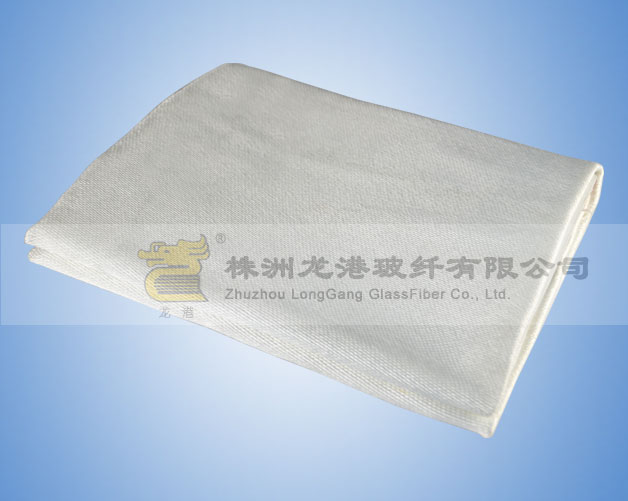

  3784 fiberglass fabric|3784 fabric|Fiberglass fabric 3784|Fiberglass manufactory
[Views:



Grade  C      Application  Fireproof

Information:
Item Number
               3784
Weave
               Satin
Yarn(tex)

Warp
Weft
EC9 33   4×2
EC9 33   4×2
ECG  150  4/2
ECG  150  4/2

                 Width
 101.6±2cm
 121.9±2cm
152.4±2.54cm
182.9±2.54cm
40±0.75inch
48±0.75inch
60±1inch
72±1inch

                 Thickness

0.8±0.08mm

0.031±0.0031inch

Weight

880±44 g/㎡

26±1.3 oz/yd2
Thread
Count
Warp
Weft
18±1.8per  cm
13±1.3per  cm
45.7±4.5per inch
33±3.3per inch
Tensile
Strength
Warp
Weft
8000 N/5cm
6000 N/5cm
888 Ibs/inch
666 Ibs/inch
 L.O.I%
              <0.5%
Service Temperature
               550℃

Application:designed for thermal insulation padding lagging and other fire control system.
